D-Link Full HD Wi-Fi Camera

DCS-8300LH

Full HD Wi-Fi Camera

DCS-8300LH

• High quality 1080p Full HD resolution
• 137-degree viewing angle
• Two-Way Audio
• Built-in IR LEDs to capture video in up to 5m of complete darkness
• Motion and sound detection
• Pinch to Zoom
• H.264 support for the best video streaming performance
• mydlink app lets you remotely view, receive notifications, save snapshots and video clips to your mobile device
• microSD card slot lets you backup video and images to a flash card
• mydlink Cloud Recording subscription
• Works with the Google Assistant, Amazon Alexa and IFTTT

Camera

Camera Hardware Profile

• 1/2.7” Megapixel progressive CMOS sensor
• Minimum illumination:
  • B/W mode (IR LEDs on): 0 lux
• Lens focal length: 2.7 mm
• Aperture: F2.4
• 5 metre IR illumination distance
• Angle of view:
  • Horizontal: 137°
  • Vertical: 71°
  • Diagonal: 167°
• Built-in Infrared-Cut Removable (ICR) Filter
• Built-in microphone and speaker

Image Features

• Pinch to Zoom Digital zoom
• Configurable sound detection level
• Time stamp and text overlay
• Configurable resolution
• Configurable motion detection windows

Video Compression

• H.264 streaming
• JPEG for still images

Video Resolution

• Main Profile 1080P (1920 x 1080) at up to 30 fps
• Second Profile 720P (1280 x 720) at up to 15 fps

Audio Support

• MPEG-2 AAC LC

Connectivity

• 802.11n/g/b wireless with WPA/WPA2 encryption

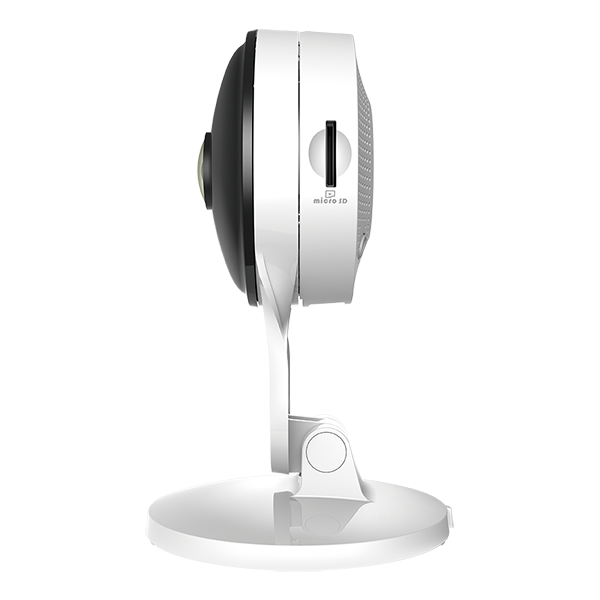

• microSD card slot
• Bluetooth 4.0

Network Protocols

• IPv4, IPv6, ARP, TCP, UDP, ICMP
• DHCP client
• RTP/RTSP
• HTTPS

Features

Event Management

• Motion detection
• Sound level detection
• Event recording to an SD card²
• Event notification and snapshot/video clip download to mobile device
• mydlink Cloud Recording²

Mobile Support

• mydlink app for iOS and Android devices¹,³

Physical

Weight

• 105 grams  ± 5%

Power Adapter

• Input: 100 to 240 V AC, 50/60 Hz
• Output: 5 V DC 1.2 A (Micro-USB)

Power Consumption

• Maximum:  5 watts ± 5%

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

• Operating: 20% to 80% non-condensing

Certifications

• CE
• CE LVD
• FCC
• ICES
• RCM

<sup>1. Smartphone or tablet must have access to the Internet via Wi-Fi or mobile Internet.
2. Use of audio or video equipment for recording the image or audio of a person without their knowledge and consent is prohibited in certain countries or jurisdictions. The end-user assumes all liability for compliance with applicable local laws.
3. Please refer to the mobile app’s store page to check whether your device is compatible.</sup>
