Gigabyte INTEL,Z490 GAMING MB wDirect 11plus1 PPDesign
$ 255
54 in stock
Best price guaranteed
Free simple returns
Free shipping on orders over $300
Manufacturer warranty included
Gigabyte INTEL,Z490 GAMING MB wDirect 11plus1 PPDesign
Z490 GAMING X
Gigabyte INTEL,Z490 GAMING MB wDirect 11plus1 PPDesign

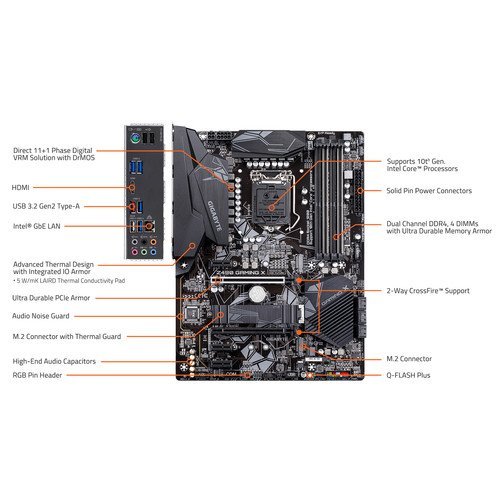

Key Features
- ATX Form Factor
- Intel Z490 Chipset
- LGA 1200 Socket
- 4 x Dual-Channel DDR4-4600 (OC)

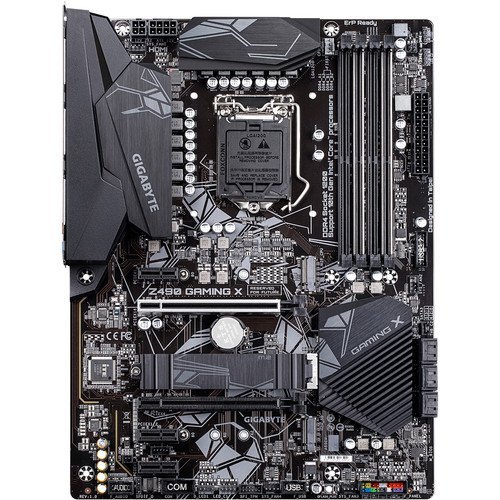

Level up your gaming experience with the Gigabyte Z490 Gaming X LGA 1200 ATX Motherboard . Designed for gamers, enthusiasts, and content creators, this motherboard is powered by the Intel Z490 chipset and supports 10th generation Intel processors with the LGA 1200 socket. It takes full advantage of the PCIe 3.0 data bandwidth using a PCIe 4.0-grade hardware design to deliver high performance for tasks such video editing, 3D rendering, and more. Up to 128GB of dual-channel DDR4 RAM, reaching 4600 MHz when overclocked, can be installed across four memory slots. The ATX motherboard also features advanced cooling and supports up to two M.2 SSDs and six SATA III storage drives, which can be put into RAID 0, 1, 5, or 10 configurations. Its two PCIe 3.0 x16 slots can accommodate 2-Way and Quad-GPU AMD CrossFireX configurations to maximize your system’s graphical capabilities for high frame rates, connecting 4K monitors, and faster video rendering times. Alternatively, the built-in HDMI port allows you to take advantage of integrated CPU graphics. Three additional PCIe 3.0 x1 slots are available alongside two Thunderbolt 3 headers for compatible expansion cards.
Connect compatible peripherals to the USB 3.2 Gen 2 Type-A port to transfer data at up to 10 Gb/s.The Z490 GAMING X also features a cFosSpeed-optimized Gigabit Ethernet port and delivers deep and immersive 7.1-channel surround sound through the Realtek ALC1200 codec. You can customize your computing experience using the addressable RGB headers to connect light strips, which can be synced with other Gigabyte RGB Fusion 2.0-compatible peripherals such as mice and keyboards using the desktop software or mobile app. Windows 10 64-bit is required to take advantage of all the motherboard’s features.
Storage and Memory
- Two M.2 slots are available, supporting up to type 22110 SATA and PCIe NVMe SSDs.
- Six SATA III headers are available for hard drives and 2.5″ SSDs.
- RAID 0, 1, 5, and 10 configurations are supported.
- Intel Optane memory modules are supported, which enhance mechanical disk drives by caching frequently accessed data.
- Up to 128GB of dual-channel DDR4-4600 (OC) memory can be installed across four slots.
Enhanced Cooling
- A large, specially designed grooved heatsink, optimizes airflow.
- The thick thermal pad work to deliver lower MOSFET temperatures.
- Thermal guards help to quickly dissipate heat from the M.2 solid-state drives to avoid speed throttling.
- Smart Fan 5 allows users to interchange fan headers to correspond with the thermal sensors located across the motherboard so that the system stays cool while maintaining a high level of performance for games and other demanding applications.
- Fan Stop lets you to take control of your computer’s noise level by allowing specified fans to halt when the system drops to a designated temperature level. These settings may be customized according to your preferences.
- Hybrid Fan Headers automatically detect the connected liquid- or air-cooling systems, enabling Smart Fan 5 to monitor information such as flow-rate.
Electrical Performance
The Z490 GAMING X features a 11+1 phase digital VRM solution with DrMOS that is designed to efficiently deliver power to critical components while ensuring stability under heavy loads.
PCIe 4.0 Hardware Design
This motherboard includes a PCIe 4.0-grade hardware design to maximize memory bandwidth for cutting-edge devices.
Designed for Durability
- The Z490 GAMING X’s double locking brackets keep PCIe slots securely affixed to the motherboard.
- A stainless steel shield reinforces the PCIe connectors, providing extra strength to support heavy graphics cards.
- The memory slots include stainless steel shielding, which is designed to prevent bending, twisting, and distortion in addition to protecting against possible electrostatic interference.
- Solid plated ATX 24-pin and 8-pin power connectors deliver a stable power supply to key components.
- This motherboard features resistors with an anti-sulfur layer that help prevent sulfur compounds in the air from causing electrical malfunctions.
- An integrated I/O shield makes the motherboard installation process easier.
- With the Q-Flash Plus feature, you can update the BIOS without having to install a CPU or video card. Simply copy the new BIOS file to a USB flash drive, insert it into the designated port, then press the Q-Flash button.
AMD CrossFireX Support
Installing multiple graphics cards will enhance the computer’s performance for demanding tasks such as CAD, 3D rendering, video editing, and more. This motherboard supports Quad-GPU and 2-Way AMD CrossFireX configurations.
Immersive Audio
- The Realtek ALC1200 audio codec provides vibrant 7.1-channel surround sound.
- High-quality, durable capacitors help to deliver clear sound to audio equipment.
- A noise guard separates sensitive audio components from areas that may cause distortion and noise.
Network Performance
- The Gigabit Ethernet port provides a fast network connection with high-speed data transfers using compatible devices.
- The cFosSpeed network traffic management application to automatically allocate bandwidth so that the highest network priority goes to games or specified applications.
USB 3.2 Gen 2
Doubling the speed of its predecessor, USB 3.2 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.
RGB Fusion 2.0 Lighting
With Gigabyte’s RGB Fusion 2.0 technology, you can customize your computer by installing RGB lighting strips alongside compatible components and peripherals for incredible effects. Lighting profiles that cover your entire system, including the motherboard, video card, and CPU can be configured and controlled using the Gigabyte RGB Fusion 2.0 desktop software or mobile app.
